Sharp Presents New Mega ZENIGATA LEDs with 108 lm/W for Europe

The newest generation of Mega ZENIGATA LEDs from Sharp shines with a luminous efficiency of up to 108 lm/W in standard use. The new LED arrays with model number GW6DxxxxNFC are available in four different performance classes: 15 W, 25 W, 35 W and 50 W. The 50 W arrays require a forward voltage of 50 V and are designed for a constant current of 950 mA. In this way, they achieve a luminous flux of up to 4780 lm. With increased energy input of up to 1500 mA, the brightness of the 50 W COB LED may be trimmed to 6930 lm.

Line-up LED Lighting COB LEDs “Mega ZENIGATA” (CRI 80+)

Mega ZENIGATA - CRI 80+/15W

Model	GW6DMA 27NFC	GW6DMA 30NFC*	GW6DMA 35NFC	GW6DMA 40NFC*	GW6DMA 50NFC	GW6DMA 60NFC
LED Colour	Warm White	Warm White	Natural White	Natural White	Pure White	Cool White
Dimensions [L x W x H] mm	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8
Colour Temperature [K]	2700	3000	3500	4000	5000	6000
CRI typ.	83	83	83	82	82	82
Luminous flux [lm] at IF = 400 mA**	1400	1450	1500	1580	1600	1600
Luminous efficacy [lm/W] at IF = 400 mA**	95	98	101	107	108	108
Luminous flux [lm] bei IF = 700 mA***	2170	2250	2330	2450	2480	2480
Lifetime at 90°C	>40.000 h	>40.000 h	>40.000 h	>40.000 h	>40.000 h	>40.000 h

* first available versions, ** at V = 37V, ***at V = 40V

Mega ZENIGATA - CRI 80+/25W

Model	GW6DMC 27NFC	GW6DMC 30NFC*	GW6DMC 35NFC	GW6DMC 40NFC*	GW6DMC 50NFC	GW6DMC 60NFC
LED Colour	Warm White	Warm White	Natural White	Natural White	Pure White	Cool White
Dimensions [L x W x H] mm	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8
Colour Temperature [K]	2700	3000	3500	4000	5000	6000
CRI typ.	83	83	83	82	82	82
Luminous flux [lm] at IF = 700 mA**	2390	2450	2530	2650	2700	2700
Luminous efficay [lm/W] at IF = 700 mA**	92	95	98	102	104	104
Luminous flux [lm] at IF = 1050 mA***	3350	3430	3540	3710	3780	3780
Lifetime at 90°C	>40.000 h	>40.000 h	>40.000 h	>40.000 h	>40.000 h	>40.000 h

* first available versions, *at V = 37V, ***at V = 39,5V

Mega ZENIGATA - CRI 80+/35W

Model	GW6DMD 27NFC	GW6DMD 30NFC*	GW6DMD 35NFC	GW6DMD 40NFC*	GW6DMD 50NFC	GW6DMD 60NFC
LED Colour	Warm White	Warm White	Warm White	Natural White	Pure White	Cool White
Dimensions [L x W x H] mm	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8
Colour Temperature [K]	2700	3000	3500	4000	5000	6000
CRI typ.	83	83	83	82	82	82
Luminous flux [lm] at IF = 950 mA**	3140	3300	3400	3550	3600	3600
Luminous efficacy [lm/W] at IF = 950 mA**	89	94	97	101	102	102
Luminous flux [lm] at IF = 1300 mA***	4080	4290	4420	4620	4680	4680
Lifetime at 90°C	>40.000 h	>40.000 h	>40.000 h	>40.000 h	>40.000 h	>40.000 h

* first available versions, ** at V = 37V, ***at V = 39V

Mega ZENIGATA - CRI 80+/50W

Model	GW6DME 27NFC	GW6DME 30NFC*	GW6DME 35NFC	GW6DME 40NFC*	GW6DME 50NFC	GW6DME 60NFC
LED Colour	Warm White	Warm White	Natural White	Natural White	Pure White	Cool White
Dimensions [L x W x H] mm	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8
Colour Temperature [K]	2700	3000	3500	4000	5000	6000
CRI typ.	83	83	83	82	82	82
Luminous flux [lm] at IF = 950 mA**	4260	4350	4580	4650	4780	4780
Luminous efficacy [lm/W]at IF = 950 mA**	90	92	96	98	101	101
Luminous flux [lm] at IF = 1500 mA***	6180	6310	6640	6740	6930	6930
Lifetime at 90°C	>40.000 h	>40.000 h	>40.000 h	>40.000 h	>40.000 h	>40.000 h

* first available versions, ** at V = 50V, ***at V = 53,5V

Line-up LED Lighting COB LEDs “Mega ZENIGATA” (CRI 90+)

Mega ZENIGATA - CRI 90+/15W

Model	GW6DGA 27NFC	GW6DGA 30NFC*	GW6DGA 40NFC*	GW6DGA 50NFC
LED Colour	Warm White	Warm White	Natural White	Pure White
Dimensions [L x W x H] mm	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8
Colour Temperature [K]	2700	3000	4000	5000
CRI typ.	93	93	92	90
Luminous flux [lm] at IF = 400 mA**	1190	1210	1270	1300
Luminous efficacy [lm/W] at IF = 400 mA**	80	82	86	88
Luminous flux [lm] bei IF = 700 mA***	1840	1880	1970	2020
Lifetime at 90°C	>40.000 h	>40.000 h	>40.000 h	>40.000 h

* first available versions, ** at V = 37V, ***at V = 40V

Mega ZENIGATA - CRI 90+/25W

Model	GW6DGC 27NFC	GW6DGC 30NFC*	GW6DGC 40NFC*	GW6DGC 50NFC
LED Colour	Warm White	Warm White	Natural White	Pure White
Dimensions [L x W x H] mm	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8
Colour Temperature [K]	2700	3000	4000	5000
CRI typ.	93	93	92	90
Luminous flux [lm] at IF = 700 mA**	1980	2020	2120	2160
Luminous efficay [lm/W] at IF = 700 mA**	76	78	82	83
Luminous flux [lm] at IF = 1050 mA***	2770	2830	2970	3020
Lifetime at 90°C	>40.000 h	>40.000 h	>40.000 h	>40.000 h

* first available versions, **at V = 37V, ***at V = 39,5V

Mega ZENIGATA - CRI 90+/35W

Model	GW6DGD 27NFC	GW6DGD 30NFC*	GW6DGD 40NFC*	GW6DGD 50NFC
LED Colour	Warm White	Warm White	Natur White	Pure White
Dimensions [L x W x H] mm	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8
Colour Temperature [K]	2700	3000	4000	5000
CRI typ.	93	93	92	90
Luminous flux [lm] at IF = 950 mA**	2650	2720	2840	2880
Luminous efficacy [lm/W] at IF = 950 mA**	75	77	81	82
Luminous flux [lm] at IF = 1300 mA***	3450	3540	3690	3740
Lifetime at 90°C	>40.000 h	>40.000 h	>40.000 h	>40.000 h

* first available versions, ** at V = 37V, ***at V = 39V

Mega ZENIGATA - CRI 90+/50W

Model	GW6DGE 27NFC	GW6DGE 30NFC*	GW6DGE 40NFC*	GW6DGE 50NFC
LED Colour	Warm White	Warm White	Natural White	Pure White
Dimensions [L x W x H] mm	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8	24 x 20 x 1.8
Colour Temperature [K]	2700	3000	4000	5000
CRI typ.	93	93	92	90
Luminous flux [lm] at IF = 950 mA**	3510	3590	3770	3820
Luminous efficacy [lm/W]at IF = 950 mA**	74	76	79	80
Luminous flux [lm] at IF = 1500 mA***	5090	5210	5470	5540
Lifetime at 90°C	>40.000 h	>40.000 h	>40.000 h	>40.000 h

* first available versions, ** at V = 50V, ***at V = 53,5V

The smaller siblings (15 W, 25W and 35W) are specified for a forward current of 400 mA, 700 mA and 950 mA, respectively, with a forward voltage of 37 V and thereby achieve a luminous flux of 1600 lm, 2700 lm and 3600 lm respectively. The forward current input may be increased, allowing maximum brightness of 2480 lm to be obtained with the 15 W series, 3780 lm with the 25 W and 4680 lm with the 35 W series.

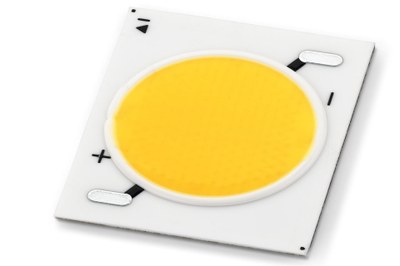

Sharp's Mega ZENIGATA LEDs continue to based on a substrate from technical ceramics (Aluminium oxide Al2O3) with dimensions of 24 mm x 20 mm x 1.8 mm and a round light emitting surface (LES) with a diameter of 17 mm. As a result, the Mega ZENIGATA COB LEDs have the characteristics of a high-performance, point light source which requires less complicated optics compared to multipoint light sources (lens, reflector). Because no changes were made in design, the new models are fully compatible from a mechanical perspective, not only with their predecessors but also within the diverse performance classes. As a result, luminaire manufacturers are able to develop luminaire series with the same lighting housing in different performance- and brightness classes and even make use of existing designs in doing so.

The narrow dimensions in combination with the small, round LES also provide high design flexibility for compact lights. This literally predestines Mega ZENIGATA LEDs for use in recessed luminaries and recessed spotlights.
The high degree of thermal conductivity of the ceramic substrate ensures optimal heat transfer to the cooling element, so that Mega ZENIGATA LEDs have a long lifetime of at least 40,000 hours with an operating temperature of up to 90°C. In addition, the very smooth surface of the underside of the substrate contributes to very efficient heat transfer and enables the LED to be securely affixed to an appropriate cooling element without excess effort.

The colour temperatures of the new white light LED arrays range from 2,700 to 6,000 Kelvin with the shades "Natural White", "Warm White" and "Pure White". Thereby, the LEDs are characterised by high (light) quality: R9 values of more than 85 with CRI values of more than 90, binning within MacAdam3 as well as high colour consistency and -stability throughout the entire lifetime under realistic operating conditions (hot lumen). The different performance classes are each available with a CRI value of at least 80 or 90.
Overall, the MegaZENI LED COB LEDs are characterised by high light quality and high performance combined with a compact form. This makes them suitable not only for street- and property lighting but also for interior use such as in recessed luminaries and recessed spotlights, etc.

Availability:
Samples are initially available in the colour temperatures 3000 K and 4000 K. These can be obtained from Sharp sales offices and distribution partners across Europe.
Please note: The availability of the products and components mentioned in this press release is expressly restricted to the European markets. For availability of these products and components outside Europe, please check with the Sharp Device Sales Offices in the respective markets.
